After treatment / general view

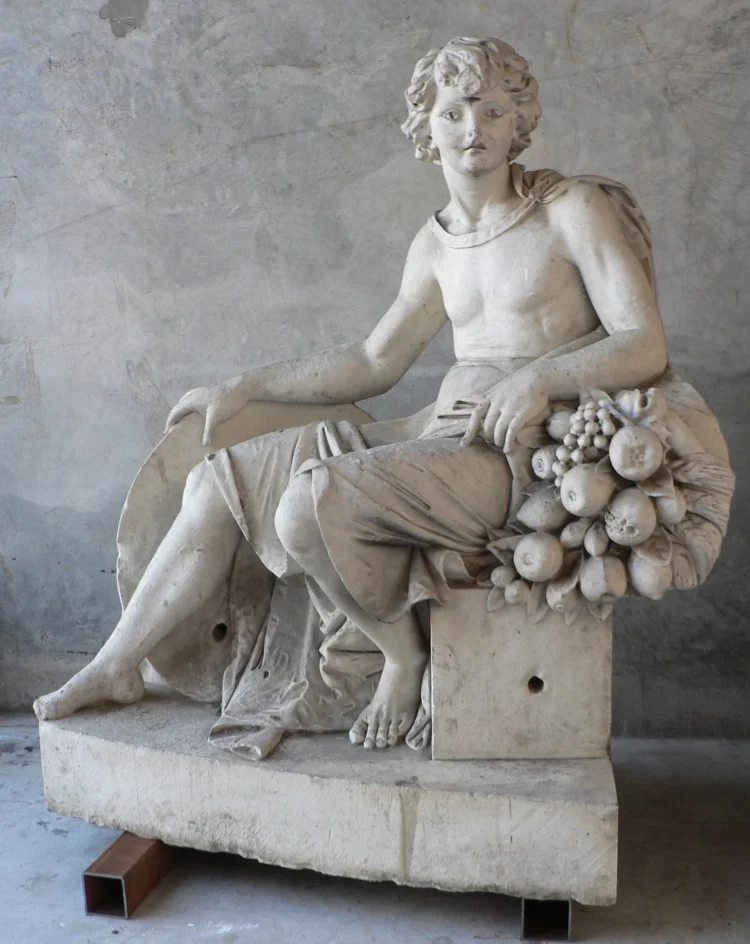

Before treatment / sculpture representing a youth
Marble surface shows ingrained dust and grime. Surface losses to shield and plinth. Missing elements such as toes. Two large holes have been previously drilled possibly to facilitate transporting of sculpture.

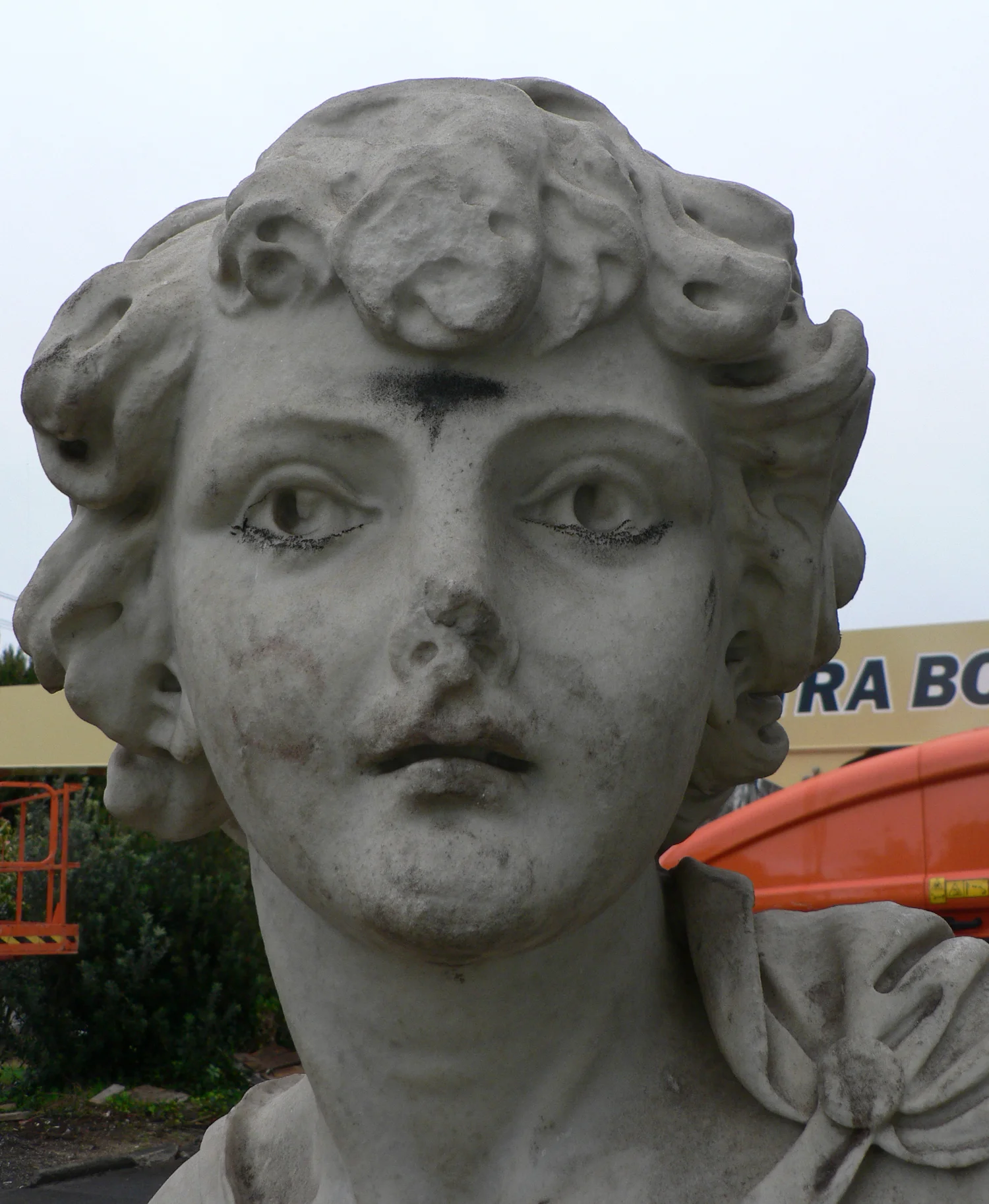

Before treatment detail / youth sculpture

After treatment / detail: surface cleaning was achieved by using a steam cleaner. Surface losses to the nose, lips and hair were in filled with a CaCO3 based putty.

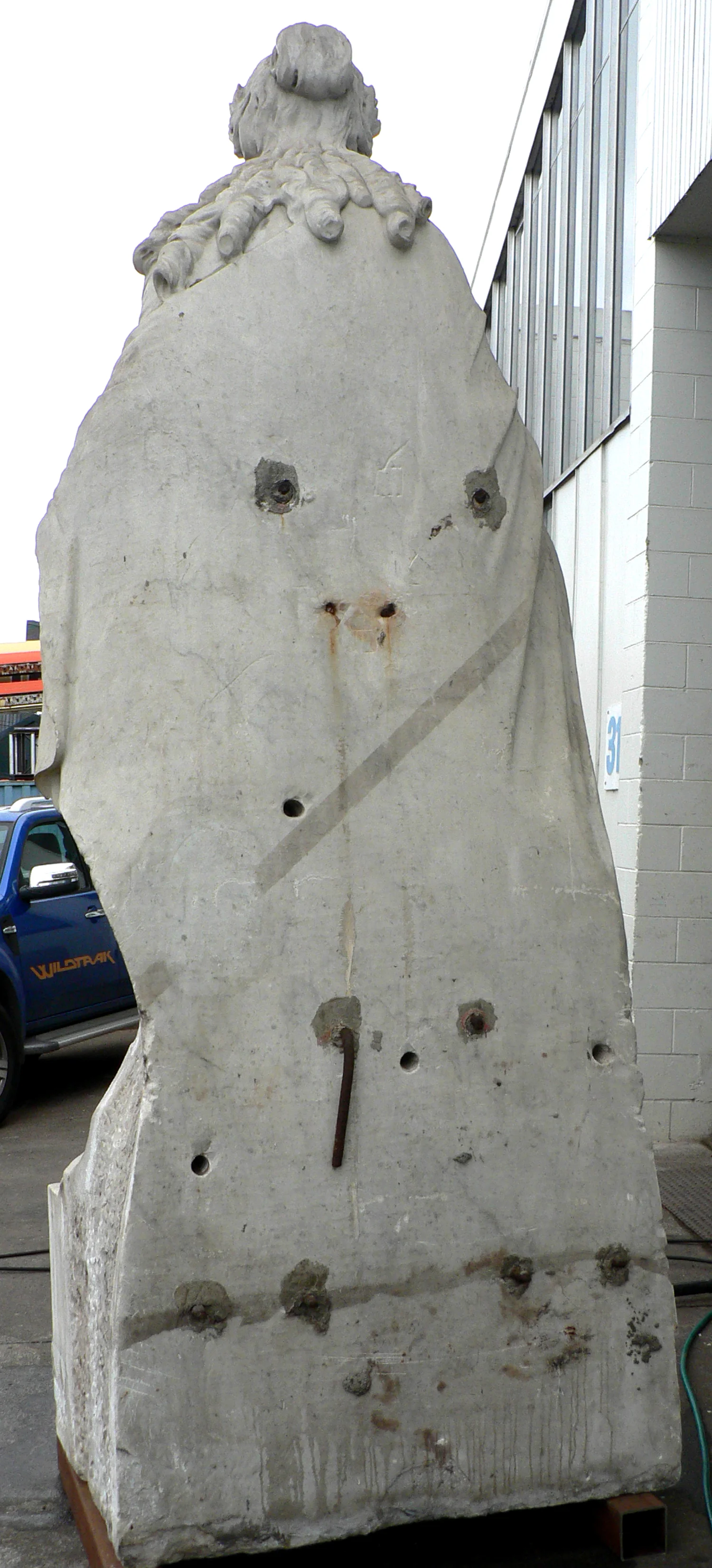

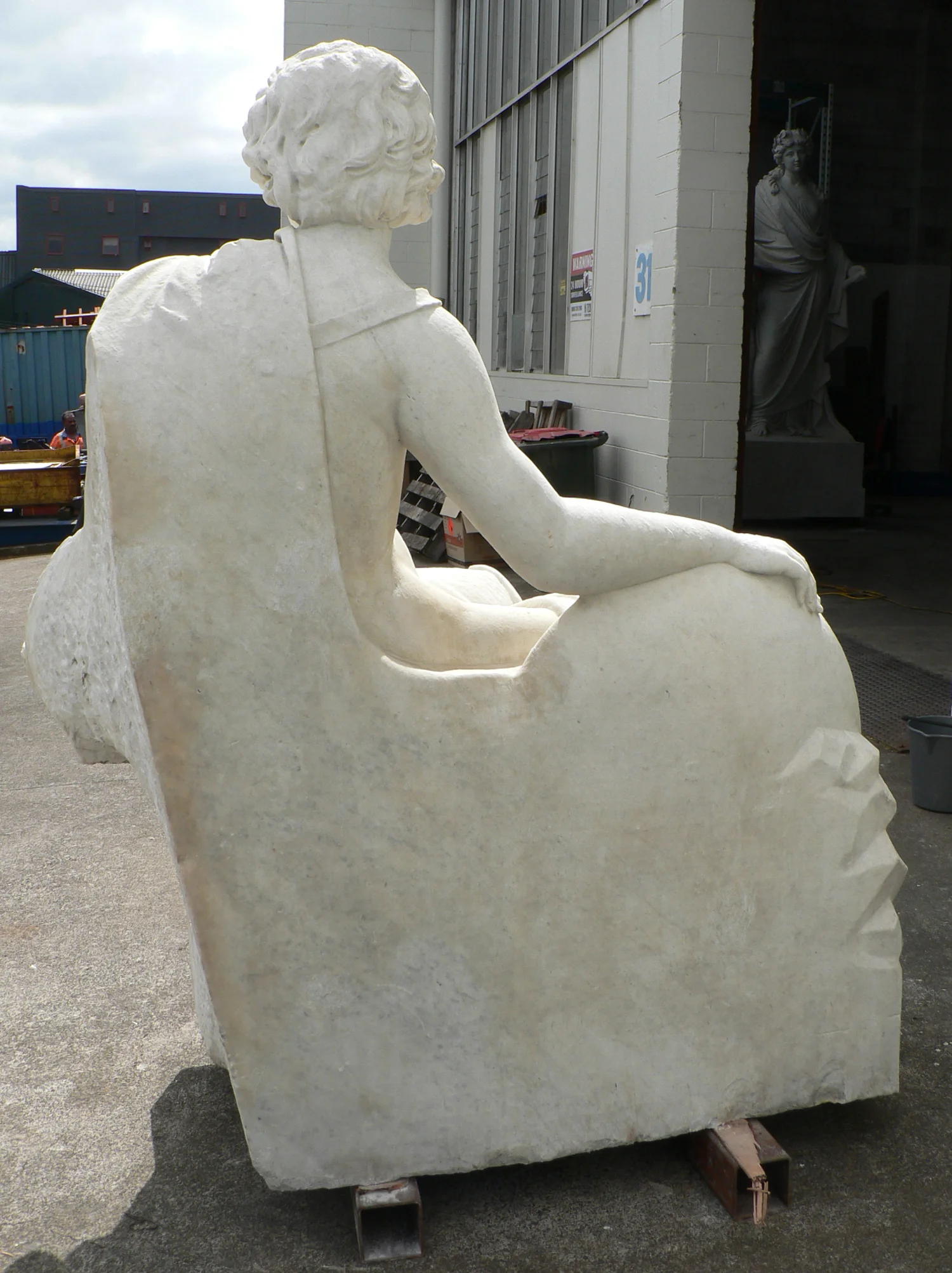

Before treatment / back view: structural losses (four large holes probably used to lift the sculpture).

After treatment / back view: removal of previous repairs. Infill of surface losses.

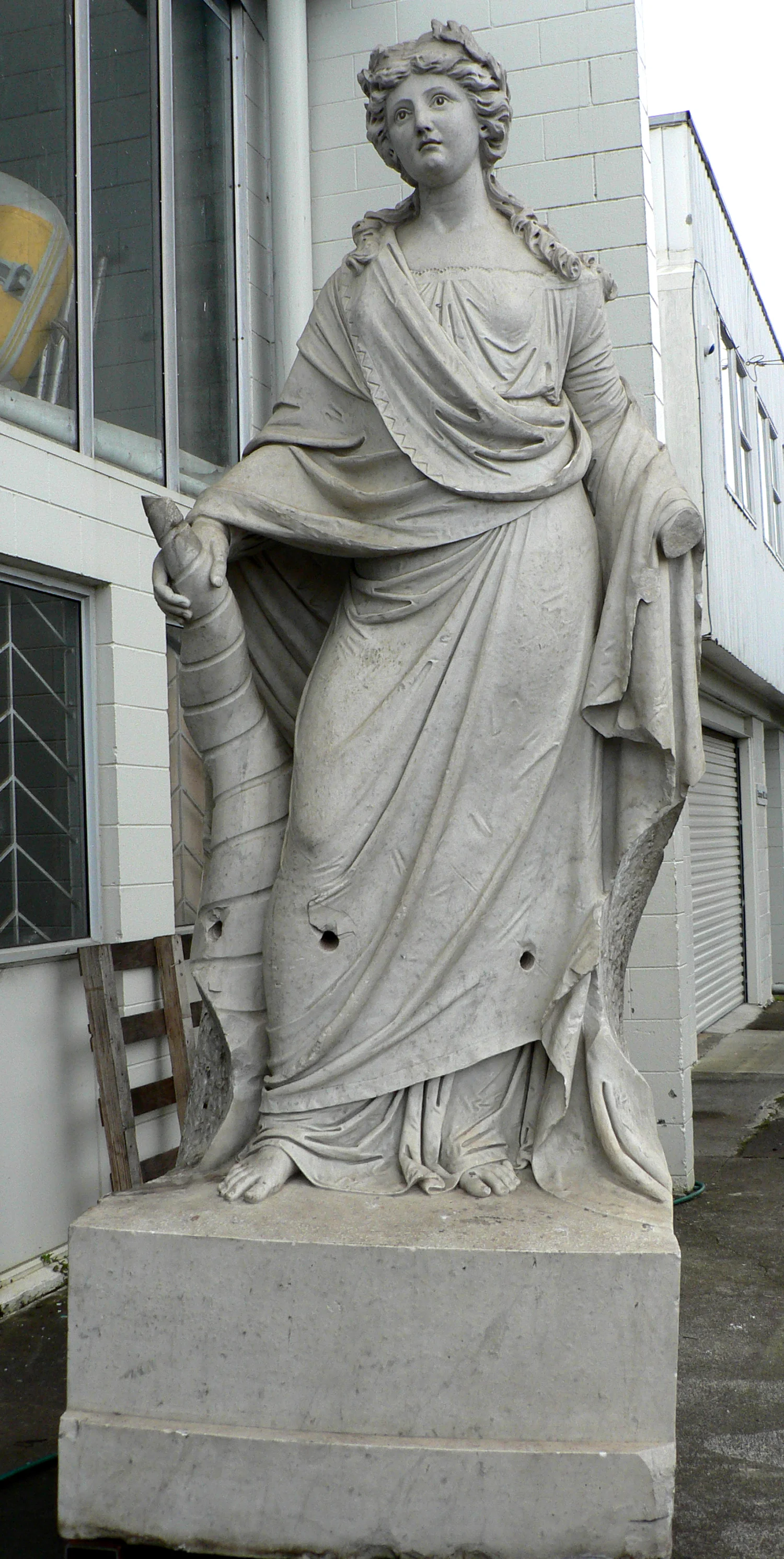

Before treatment / Central female figure front view:
Marble surface shows ingrained dust and grime. Cracks associated  with structural holes. Tip of cornucopia is missing as well as left hand. Extensive surface losses to drape and plinth.

Before treatment / approximately ten metal pins were fixed to the surface with cement. Pins were corroded and surrounding marble surface showed oxidation.

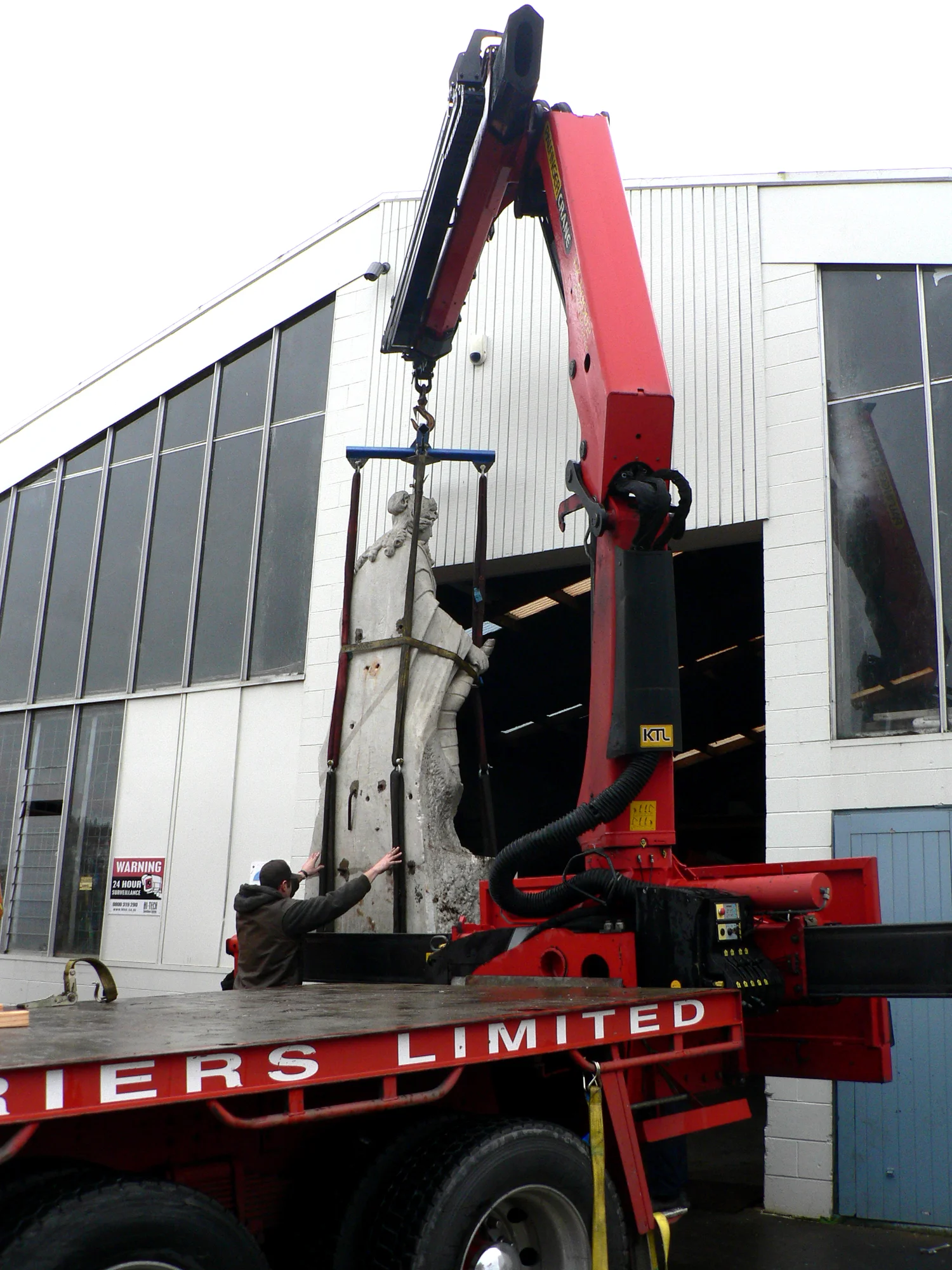

Transportation and lifting in to our workshop

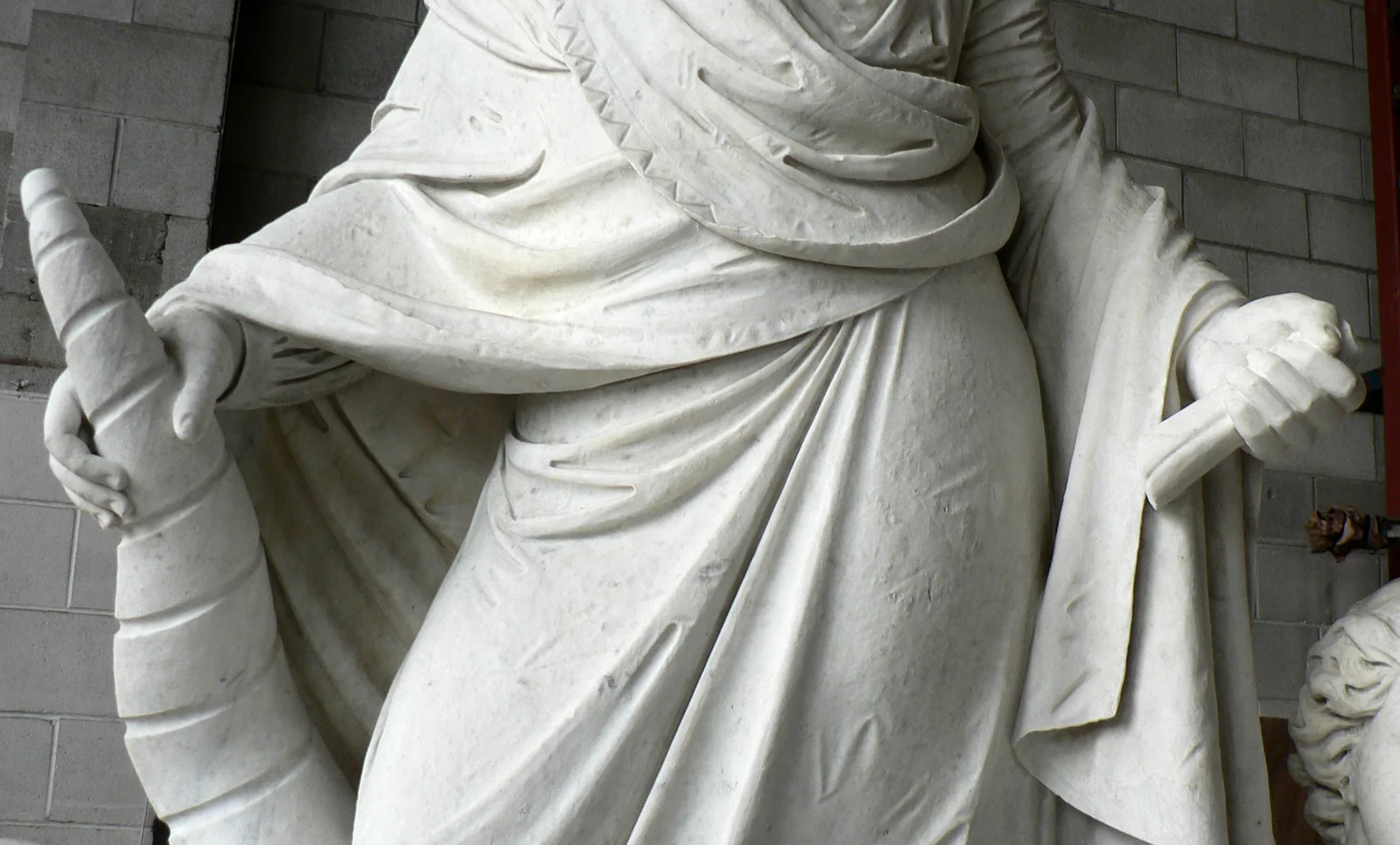

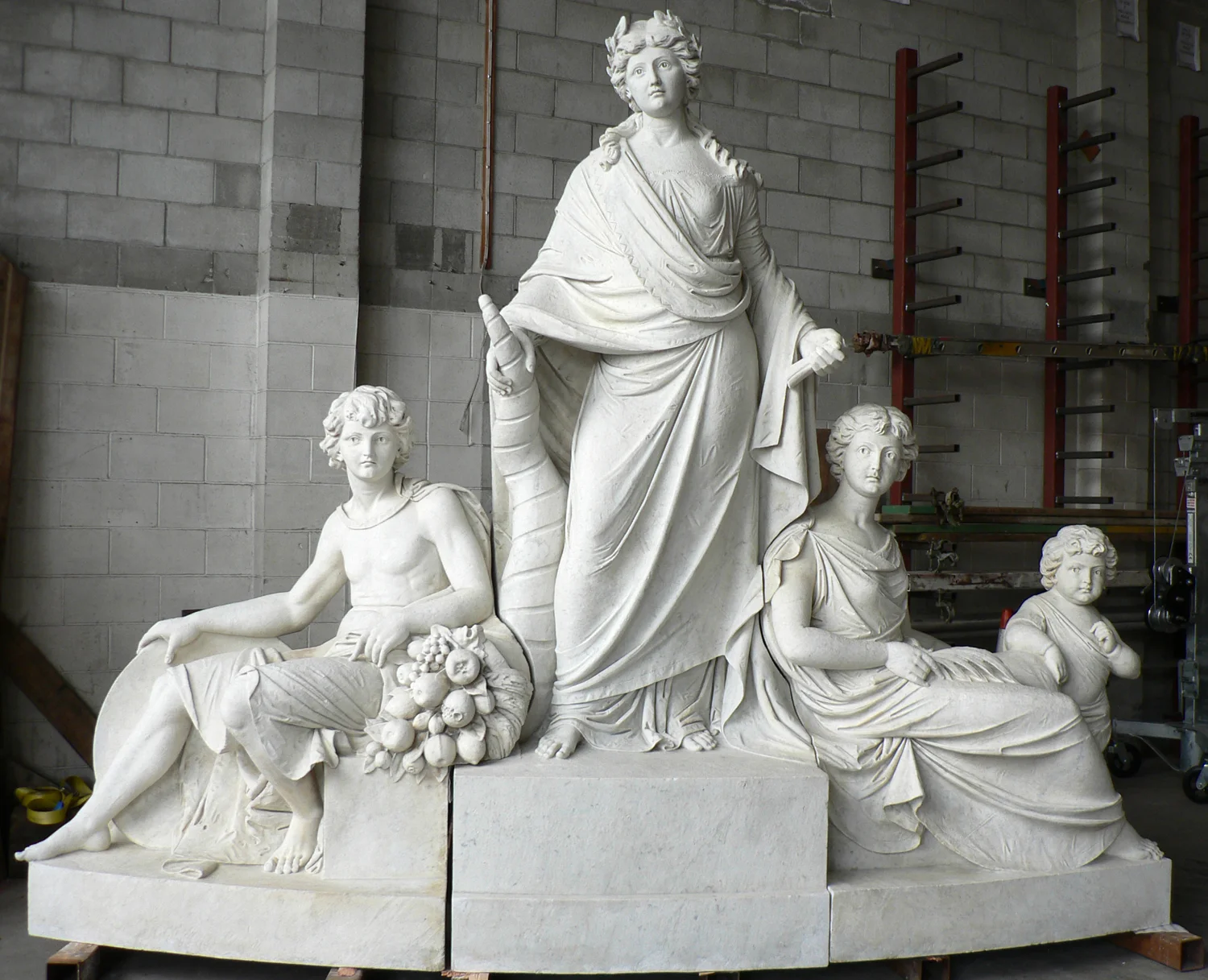

After treatment / detail: rebuild of tip of cornucopia and reattachment of new carved hand. Research focused on determining hands position and attribute (s) lead to similar replicas found at AMP buildings in New Zealand and Australia. These replicas were used as a reference in sculpting a new hand.

Female and child figures  / before treatment

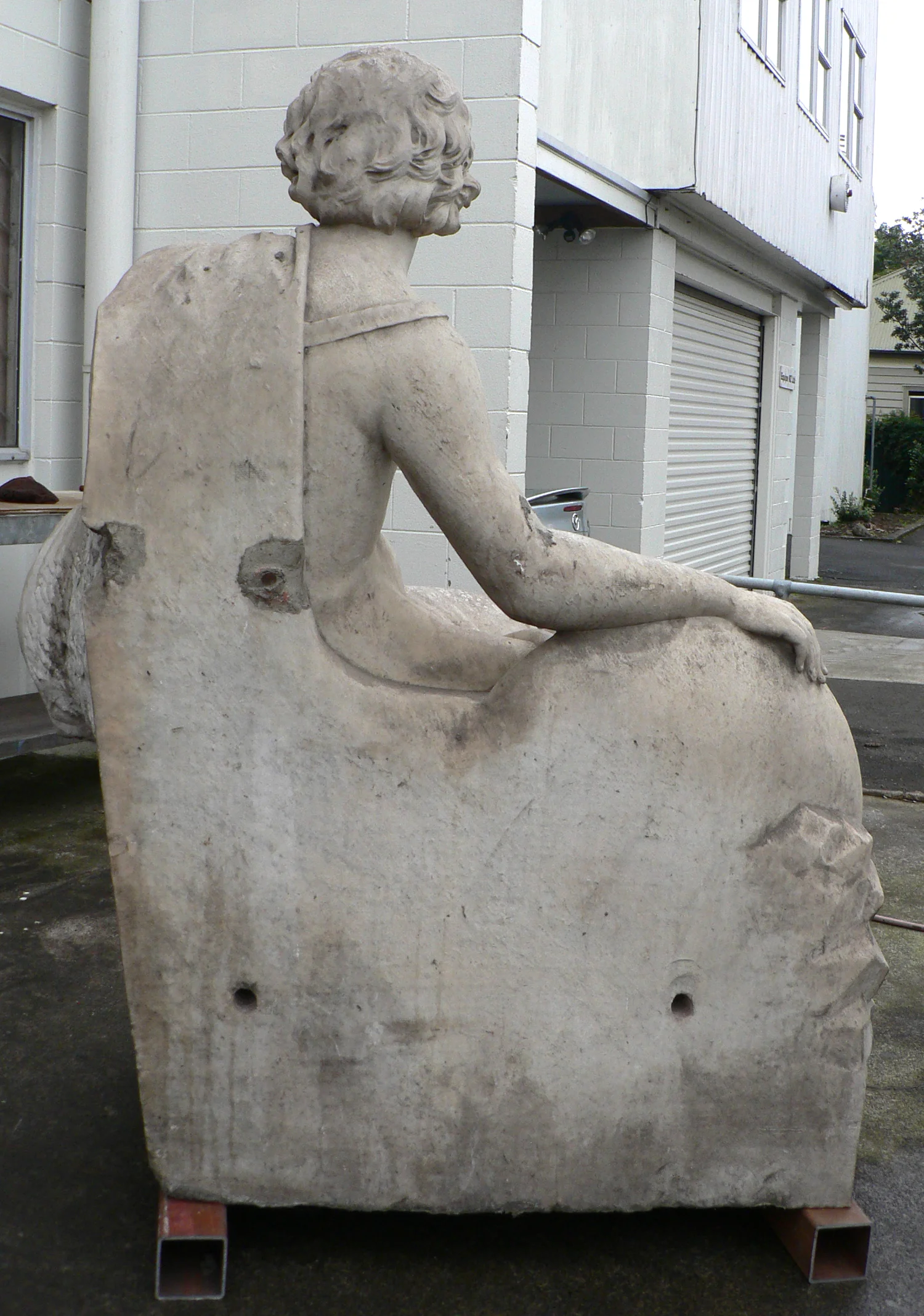

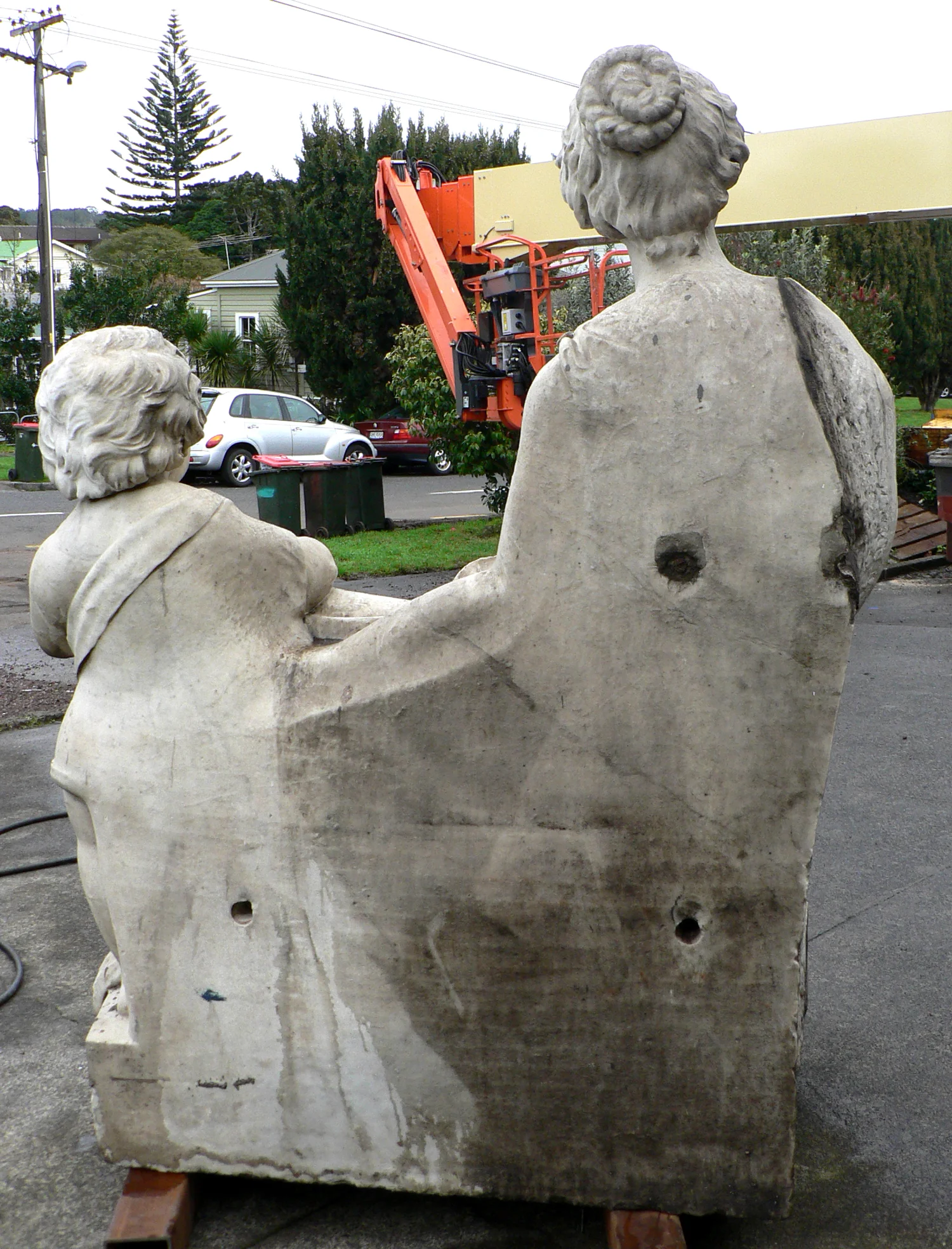

Before treatment (back) / female and child figures

After treatment

General view before treatment: whole monument is heavily soiled and shows  biological growth concentrating on the plinth area. Limestone surface is weathered and some areas are missing or have lost detail. Monument has been extensively repaired with an incompatible mortar.

View of the statue of King George V /  before treatment

During treatment / cleaning and removal of previous repairs

During treatment / infilling and rebuilding of decorative elements.This is a reversible process that can be undone if necessary.

Detail / after treatment

Memorial’s general view / after conservation work

General view (onsite): fountain sustained severe damage due to car crash causing structural collapse of all its elements.

At NPCC storage facilities

Before treatment / detail: underside of capital is broken (loose) Capital has been extensively repaired with the inclusion of several Dutchman stone patches. Some of these additions are unlevelled and there is conspicuous and excess adhesive at joints.

After treatment /detail: steam cleaning. Reattachment of underside of capital. Removal of excess adhesive. Infilling of joints and surface losses.

Before treatment: surface is heavily soiled (biological growth). All column pedestals evidence considerable damage to the topside area. One of the pedestals is broken into multiple fragments.

After treatment (on site): steam cleaning. Infilling / rebuild  of surface losses. Resetting of all elements.

Before treatment

After treatment (on site): resetting of elements and repointing of joints.

Before treatment (detail): Loss of detail due to mechanical damage. Previous repairs. Exposed joints and several cracks. General weathering of the surface.

After treatment (detail): Infilling and rebuild of surface losses. Consolidation of cracks and fissures.

General view on site after reinstatement.

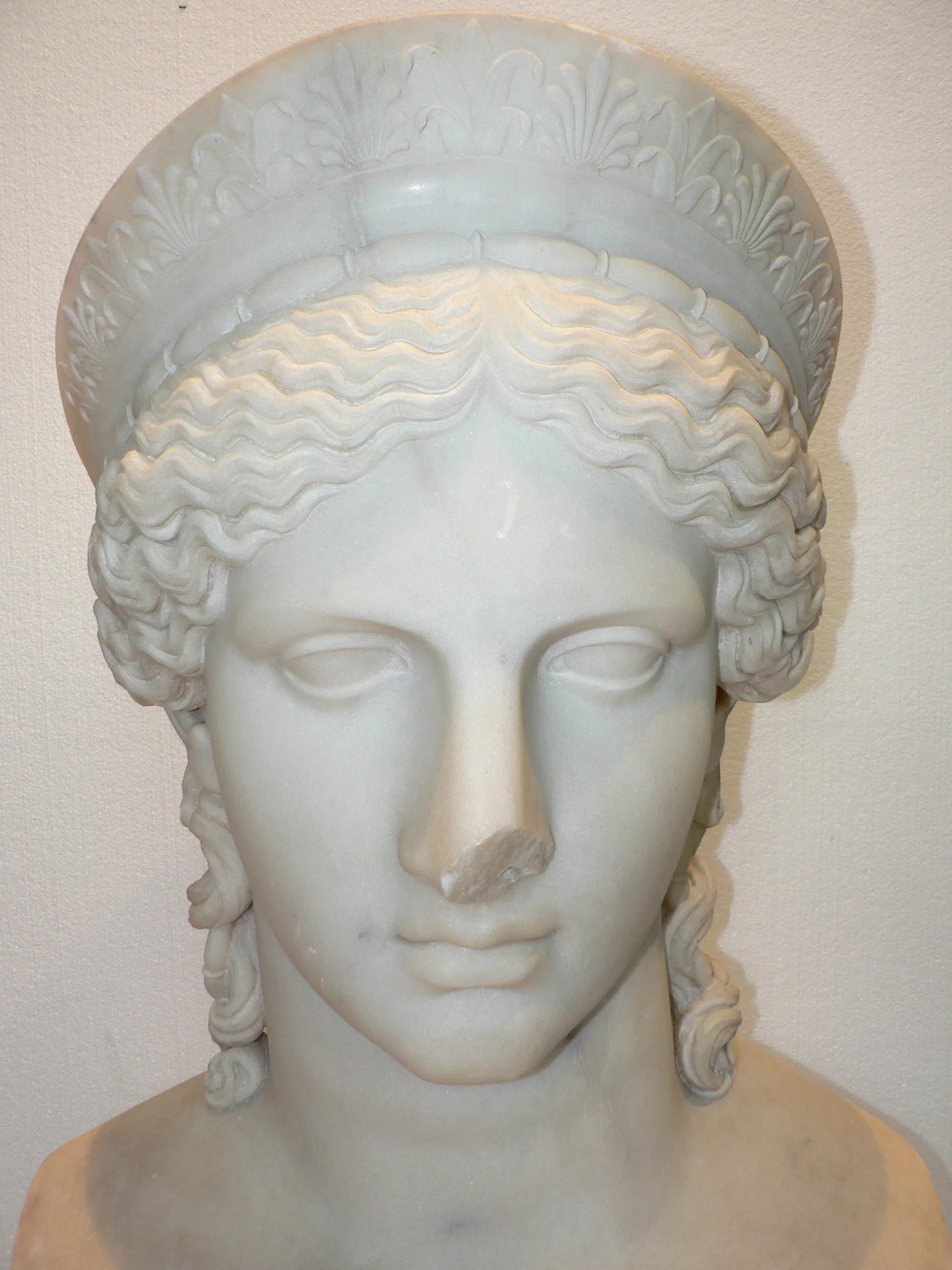

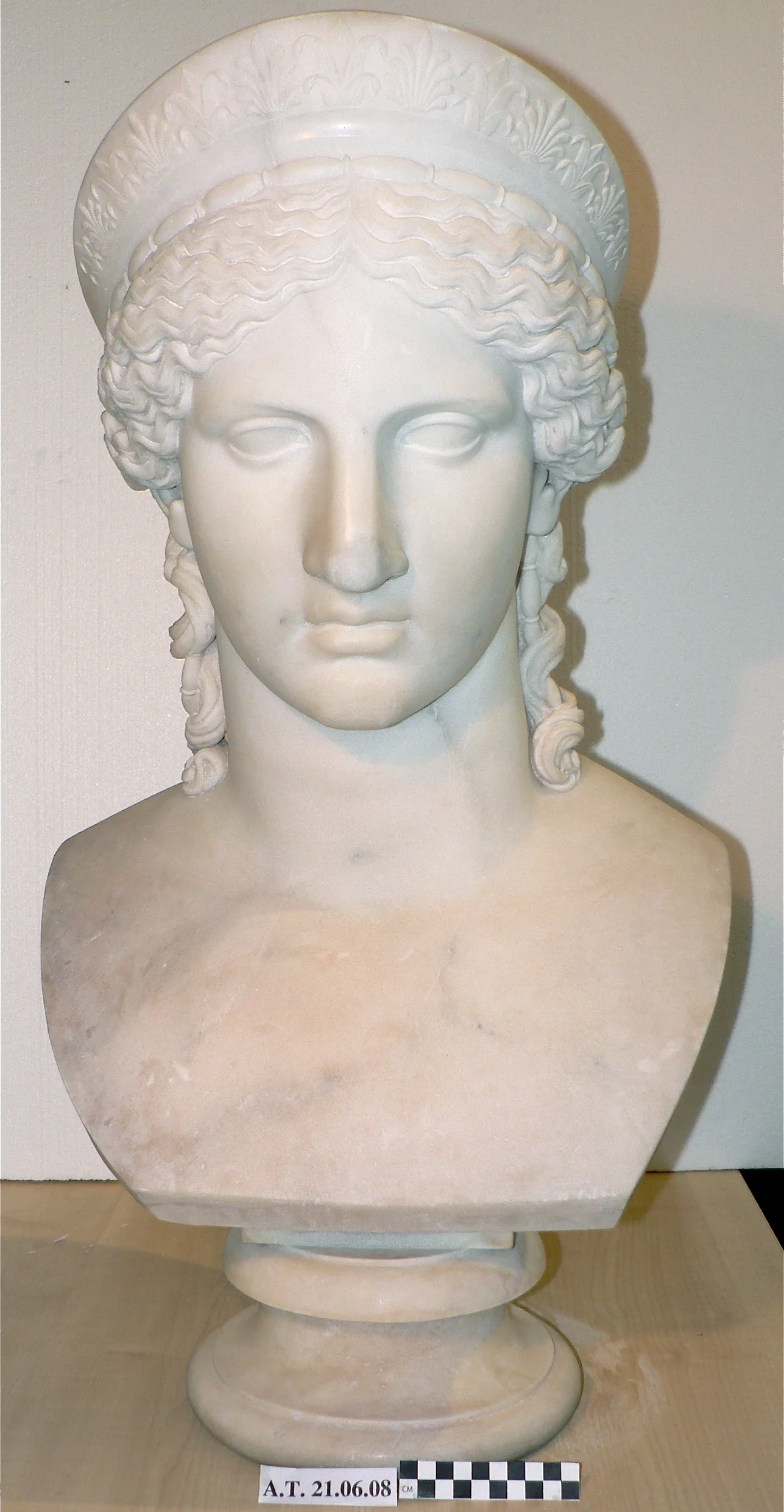

Marble surface is stained and shows a thick layer of grime and grease. Structurally, pointing between bust and pedestal is missing causing some movement between the two elements. Tip of the nose is missing.

Cement accretions are visible at pedestal and hair areas. Minor surface abrasion to the hair and tiara.

During treatment / detail: tests were carried out to determine cleaning method. Steam cleaning was considered the most effective at gradually and evenly removing the soiling.

After treatment: A mold was taken from the nose and a cast, similar in apparence to marble, was made and consequently attached to the nose.

Surface evidences heavy biological growth (lichens and moss) concentrating on the pedestal area and capital of headstone.

Although some of the epitaph had been mechanically removed (vandalised) lettering is distinct and legible. Headstone’s surface is smooth and retains good physical cohesion. Visible crack running parallel to lettering.

Infilling of surface loss to epitaph and re-lettering. Both treatments are reversible

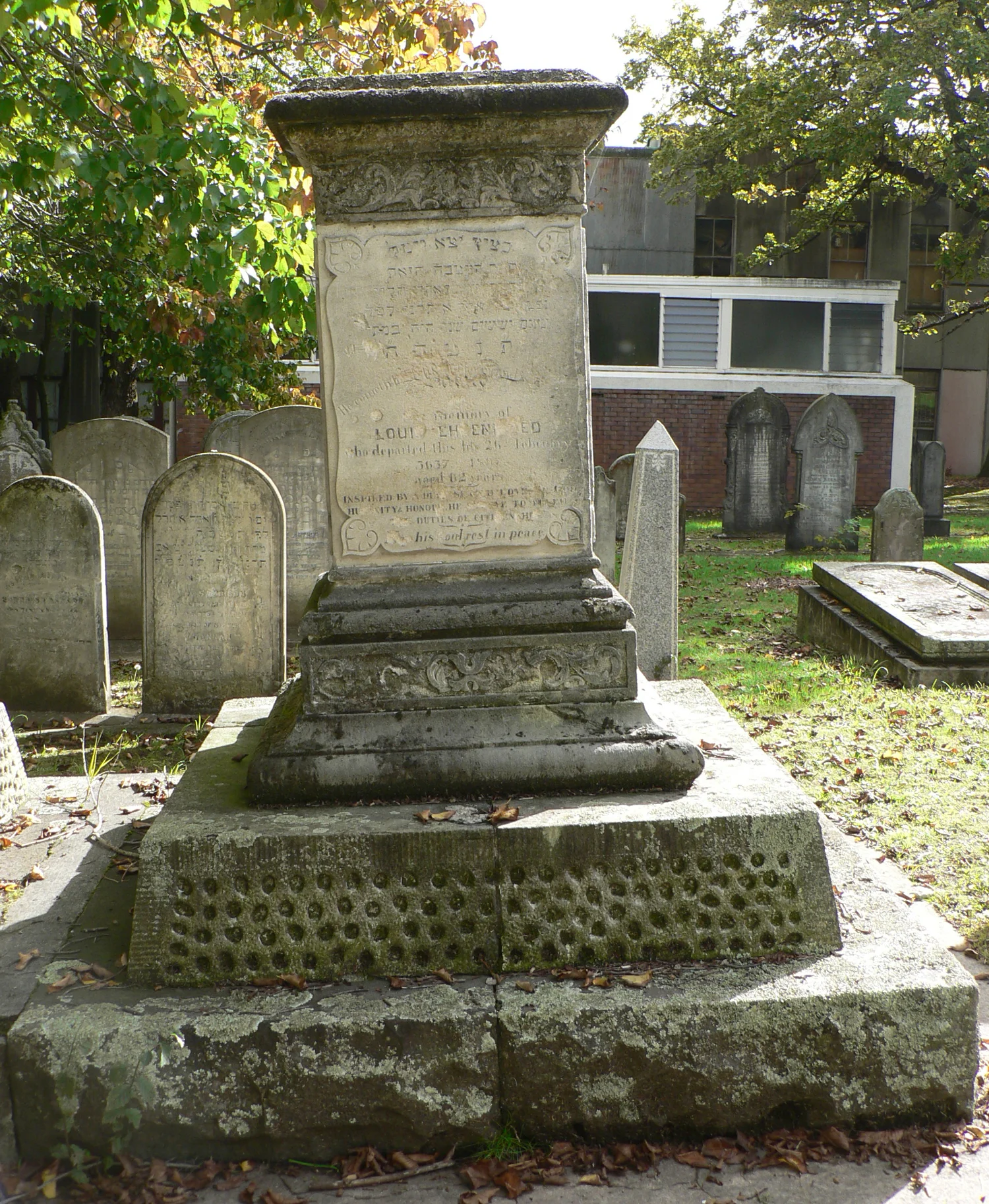

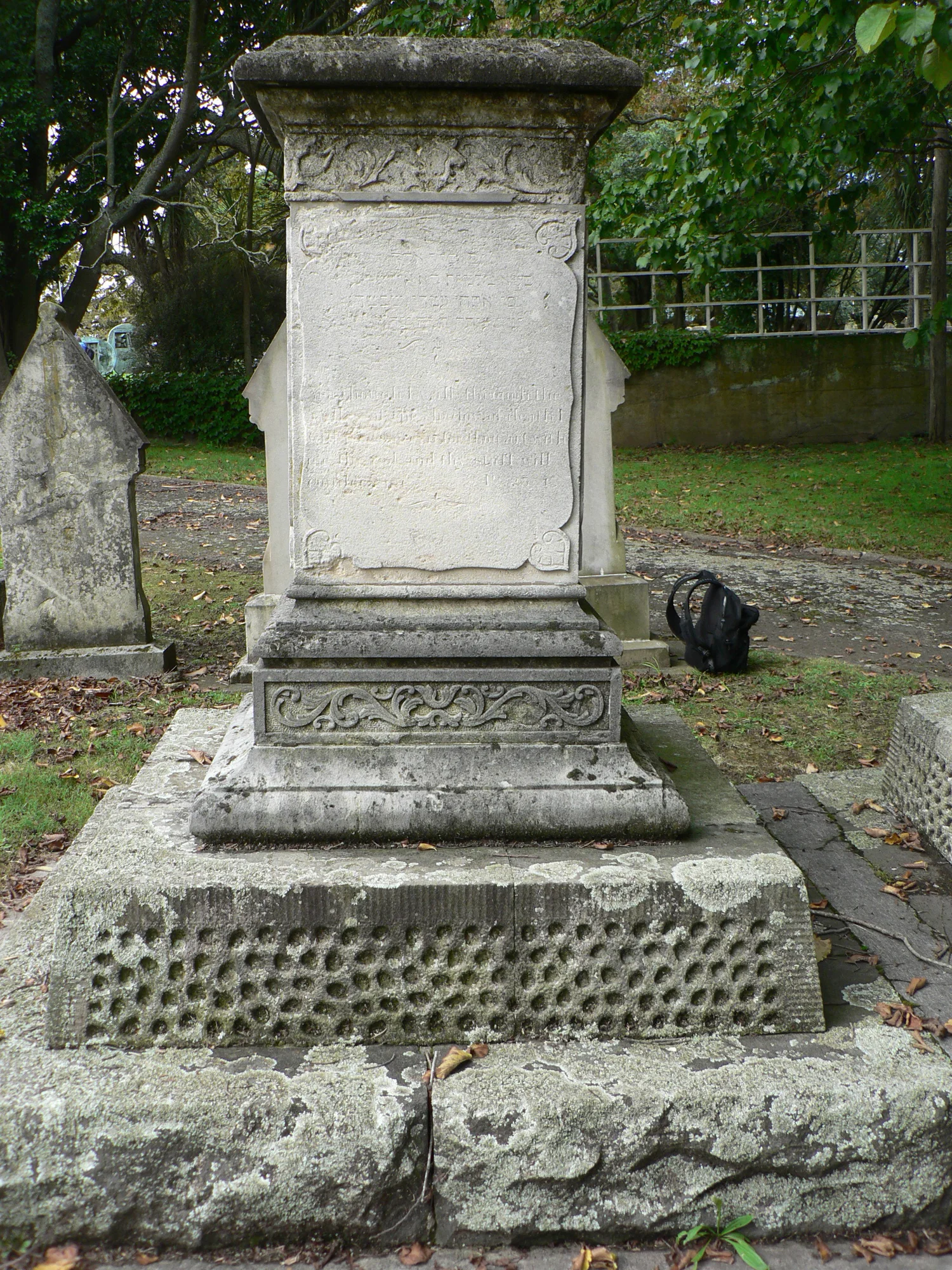

Biological growth (lichens and moss). Structural crack extending from top of the capital through epitaph area. Minor surface loss to selective areas (letters) of the epitaph. Previous cement based repairs to friezes.

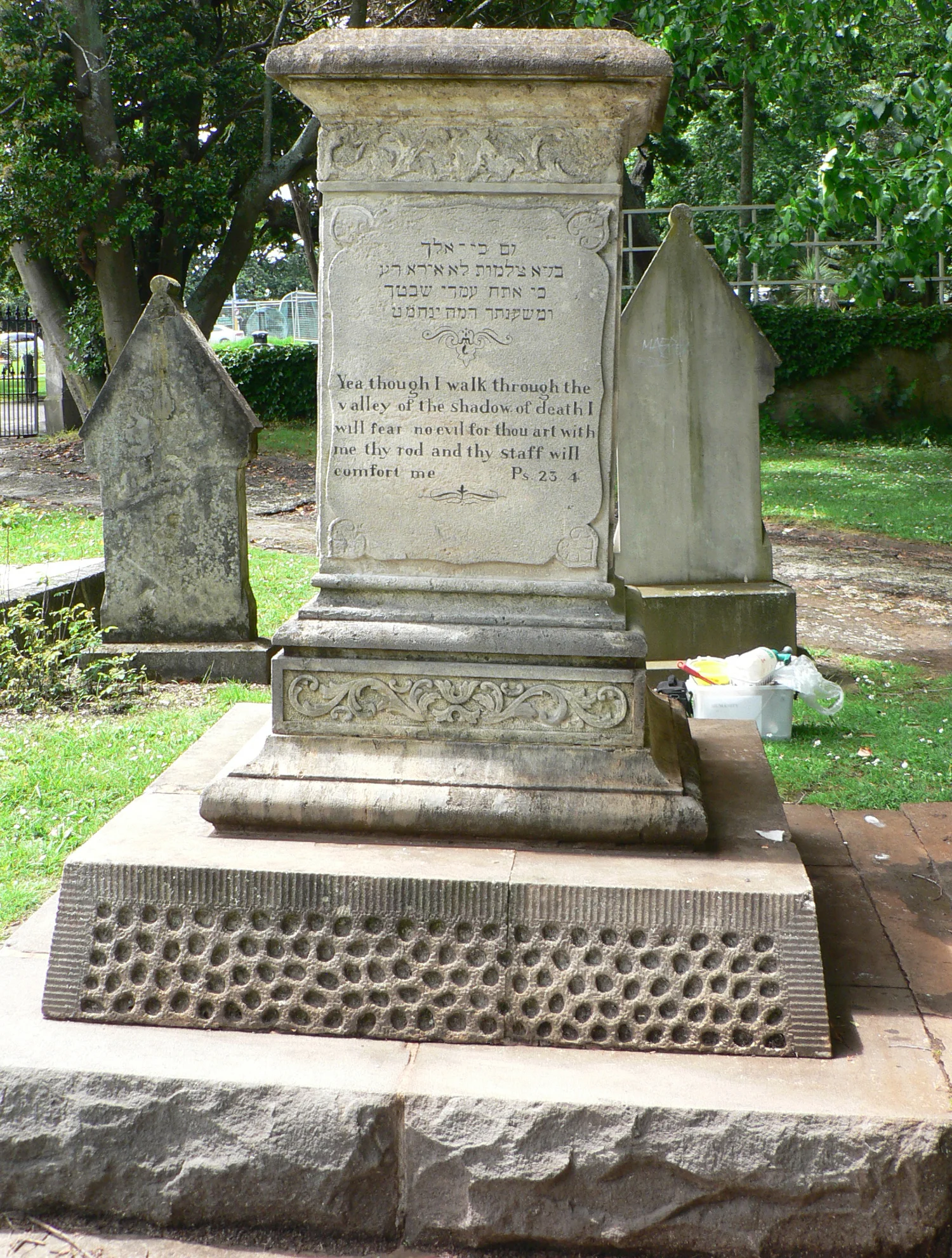

Removal of previous repairs. Steam cleaning. Rebuild of friezes and other architectural elements. Infilling of cracks and surface losses. Re-lettering. Repointing of joints.

High level of biological growth (lichens and moss) concentrating on the pedestal area and capital of headstone.

Stone’s surface is ‘sugary’ and crumbles when touched. Extensive surface losses to epitaph. Lettering is mostly illegible.

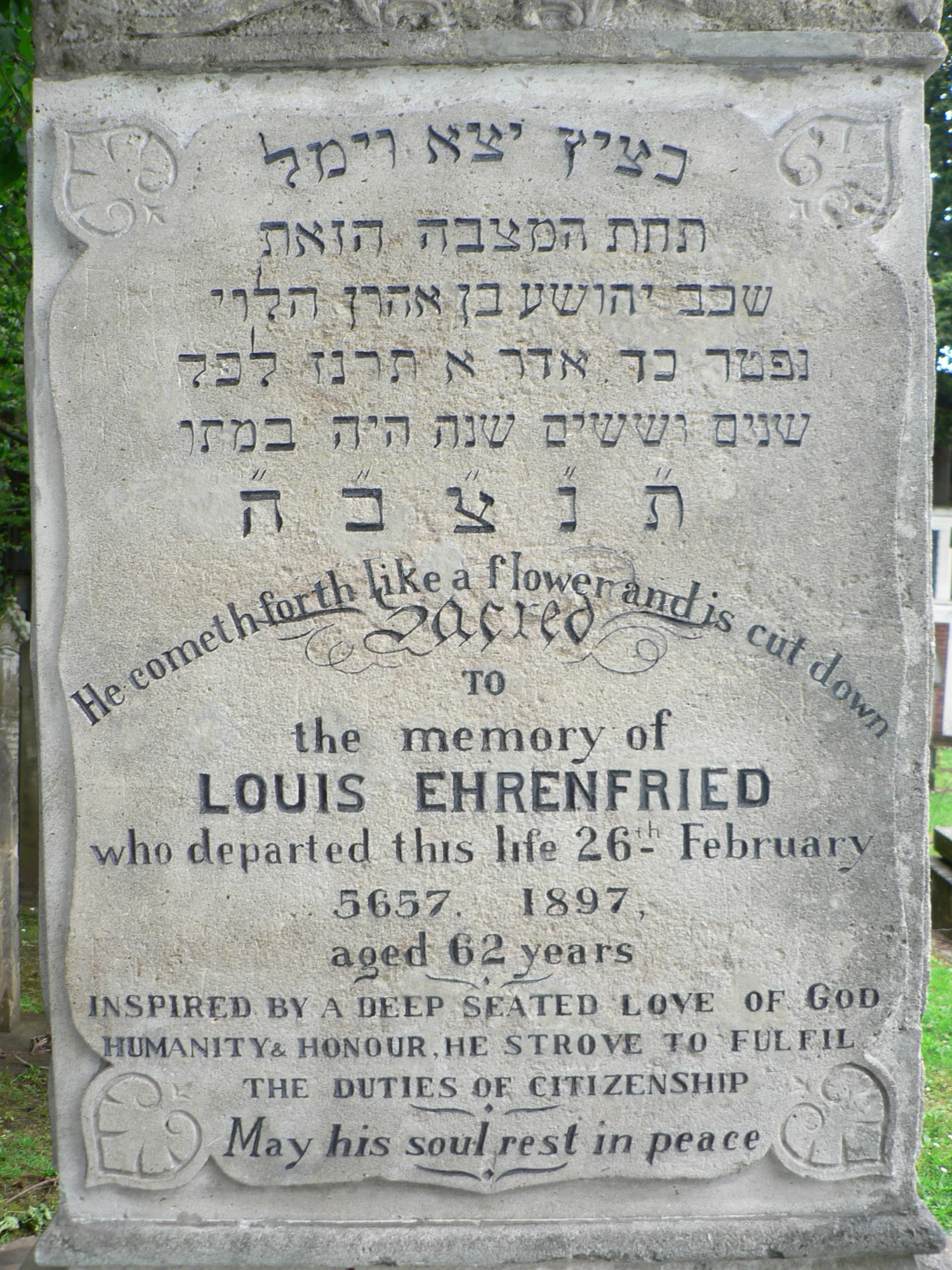

Consolidation and infilling of surface losses. Consulting with language specialist (Hebrew) to accurately determine original epitaph. Re- lettering. All surface treatments are reversible.

Biological growth concentrating on capital and pedestal. Lettering has weathered and is illegible.

Consolidation and infilling of surface losses. Consulting with language specialist (Hebrew) to accurately determine original epitaph. Re- lettering. All treatments to surface are reversible.

Before treatment: both headstone and plinth were dislodged from base. Headstone is broken into several fragments as well as memorial’s  concrete kerbing and decorative elements.

During treatment: repositioning of plinth and drilling of headstone

During treatment: lifting of headstone for resetting

Headstone before steam cleaning

After treatment

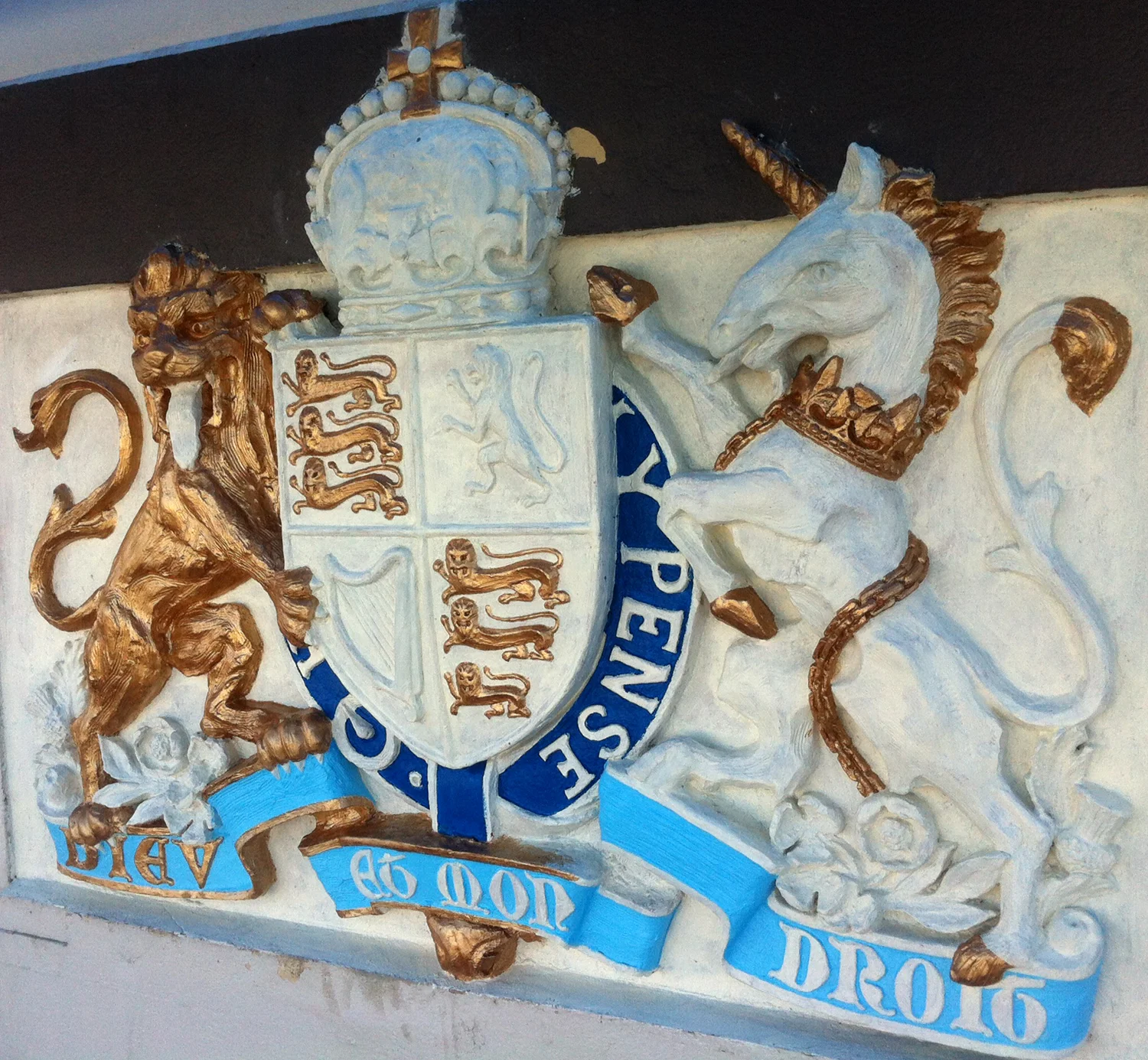

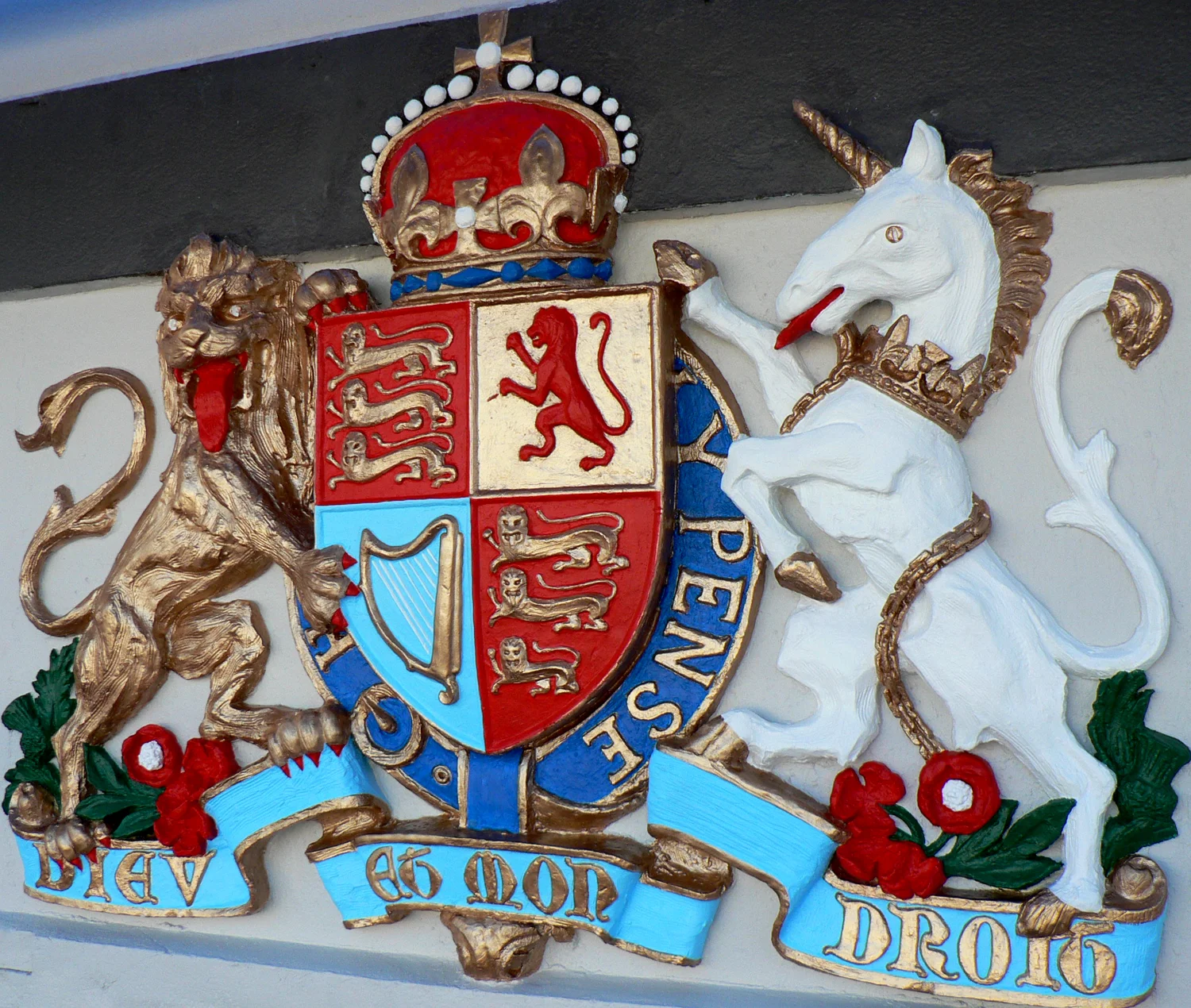

British Coat Arms / after treatment

View of former Post Office building at Te Awamutu / before treatment

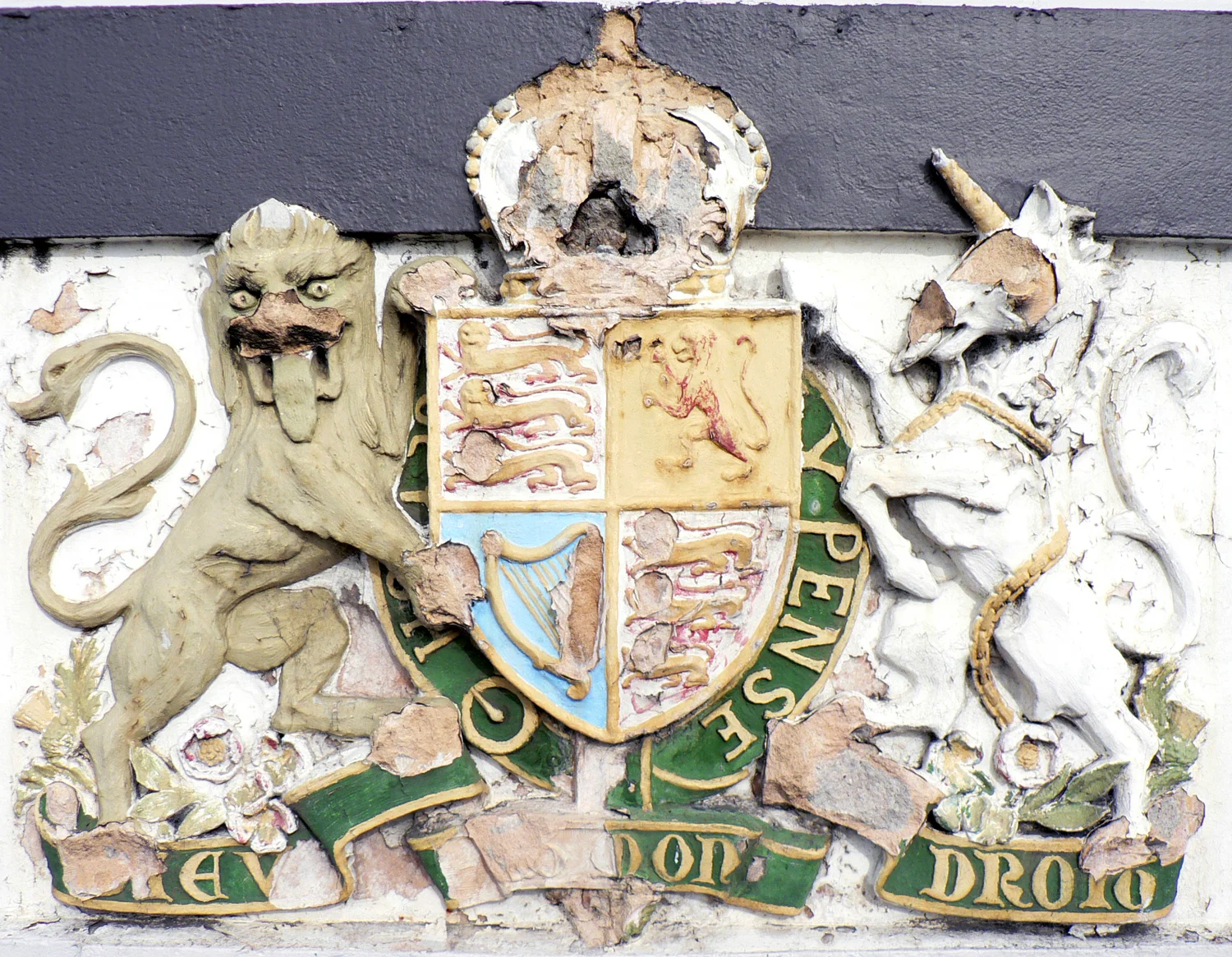

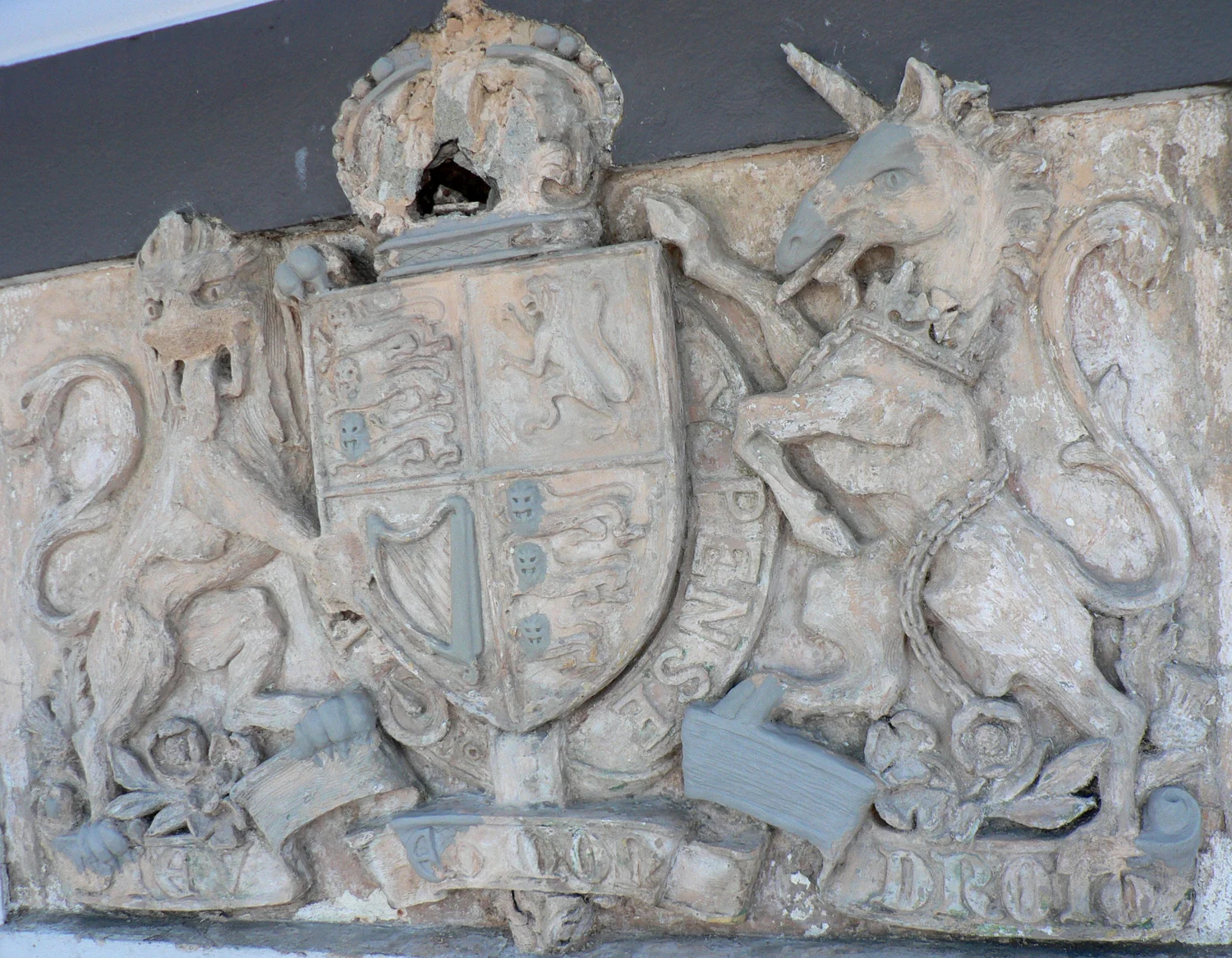

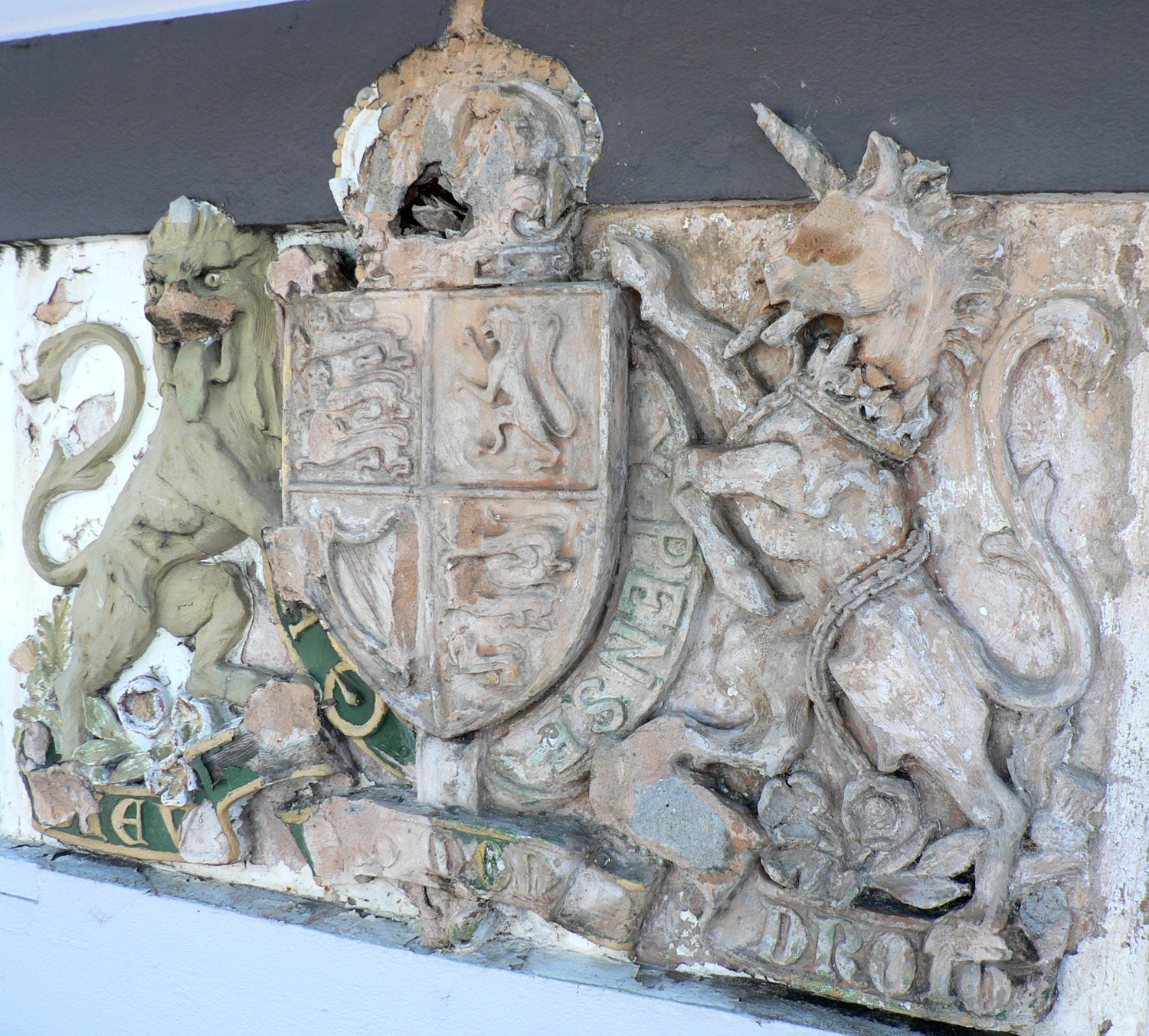

British Coat of Arms / before treatment

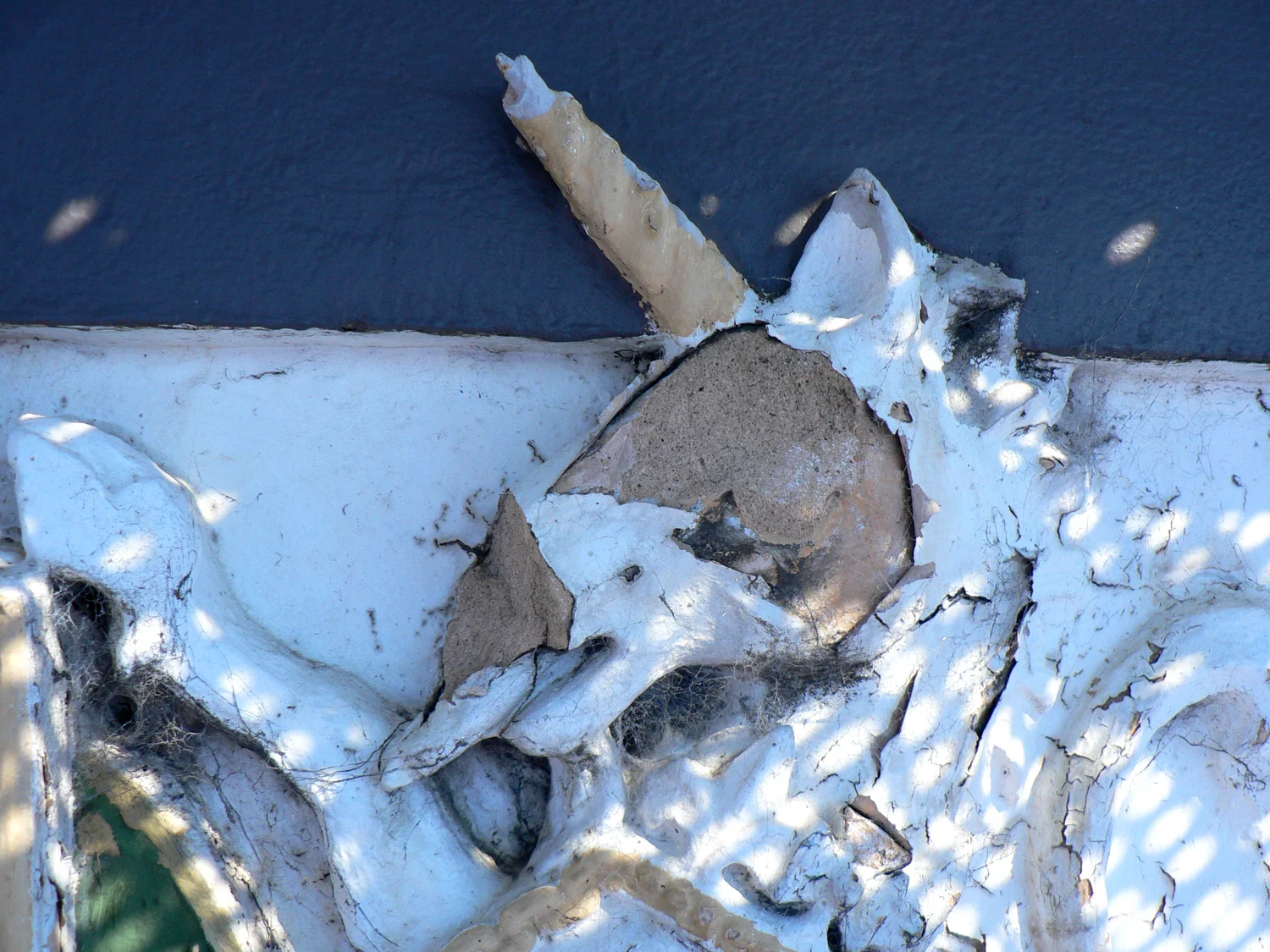

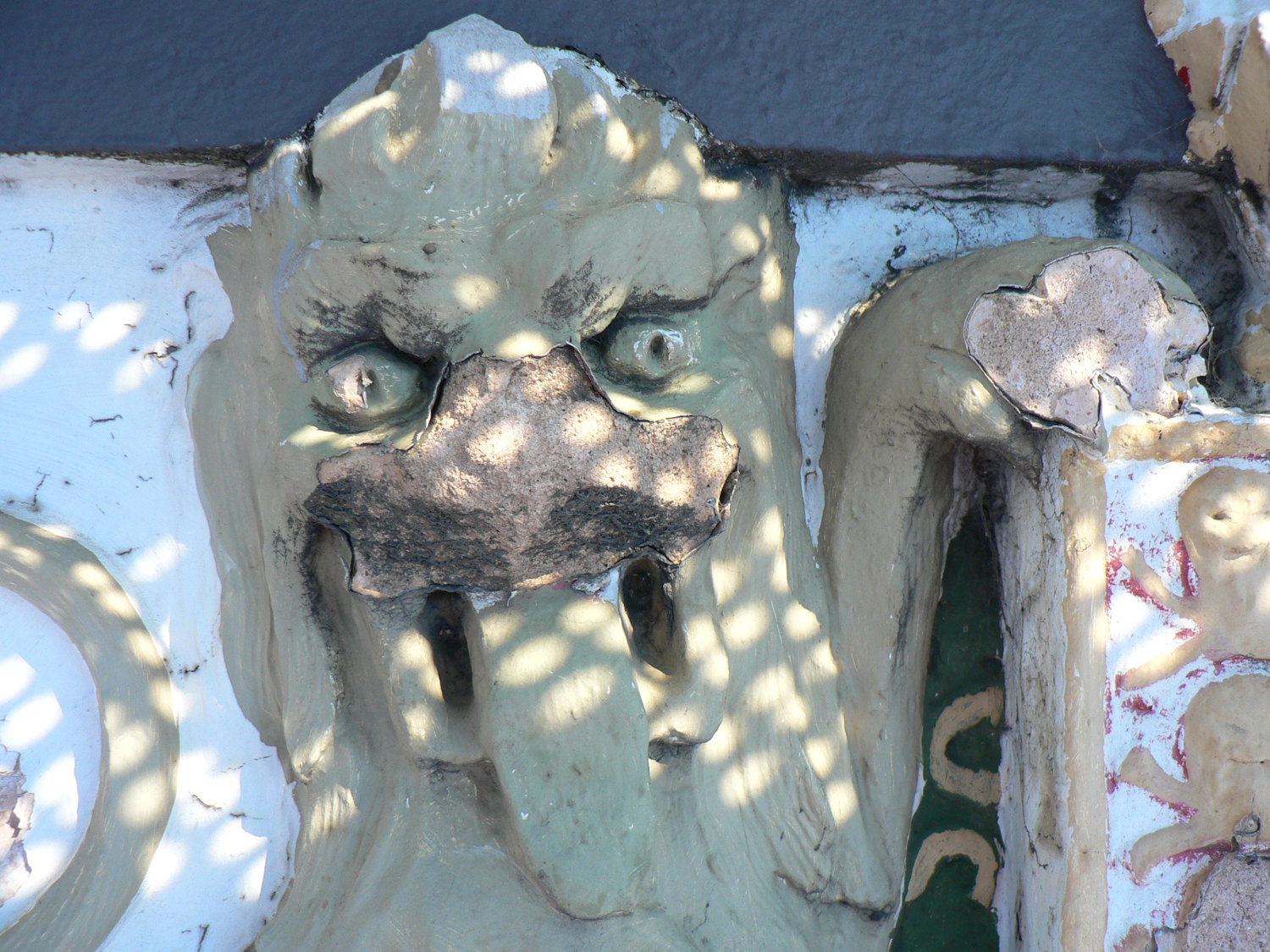

 Before treatment / detail

Before treatment / detail

 During treatment / paint removal

During treatment / rebuild of surface losses

During treatment / detail: rebuild of surface losses

During treatment / repainting

After treatment

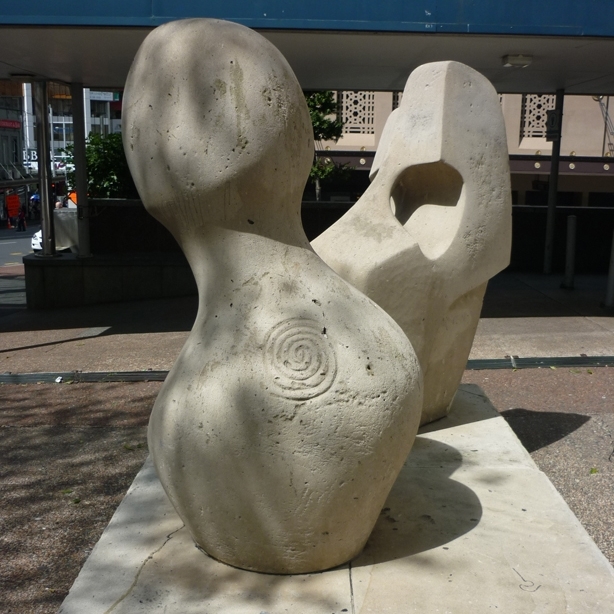

Before treatment / general view: sculpture is heavily stained by a permanent anti graffiti coating. Conspicuous joint (repair) at the lower corner.

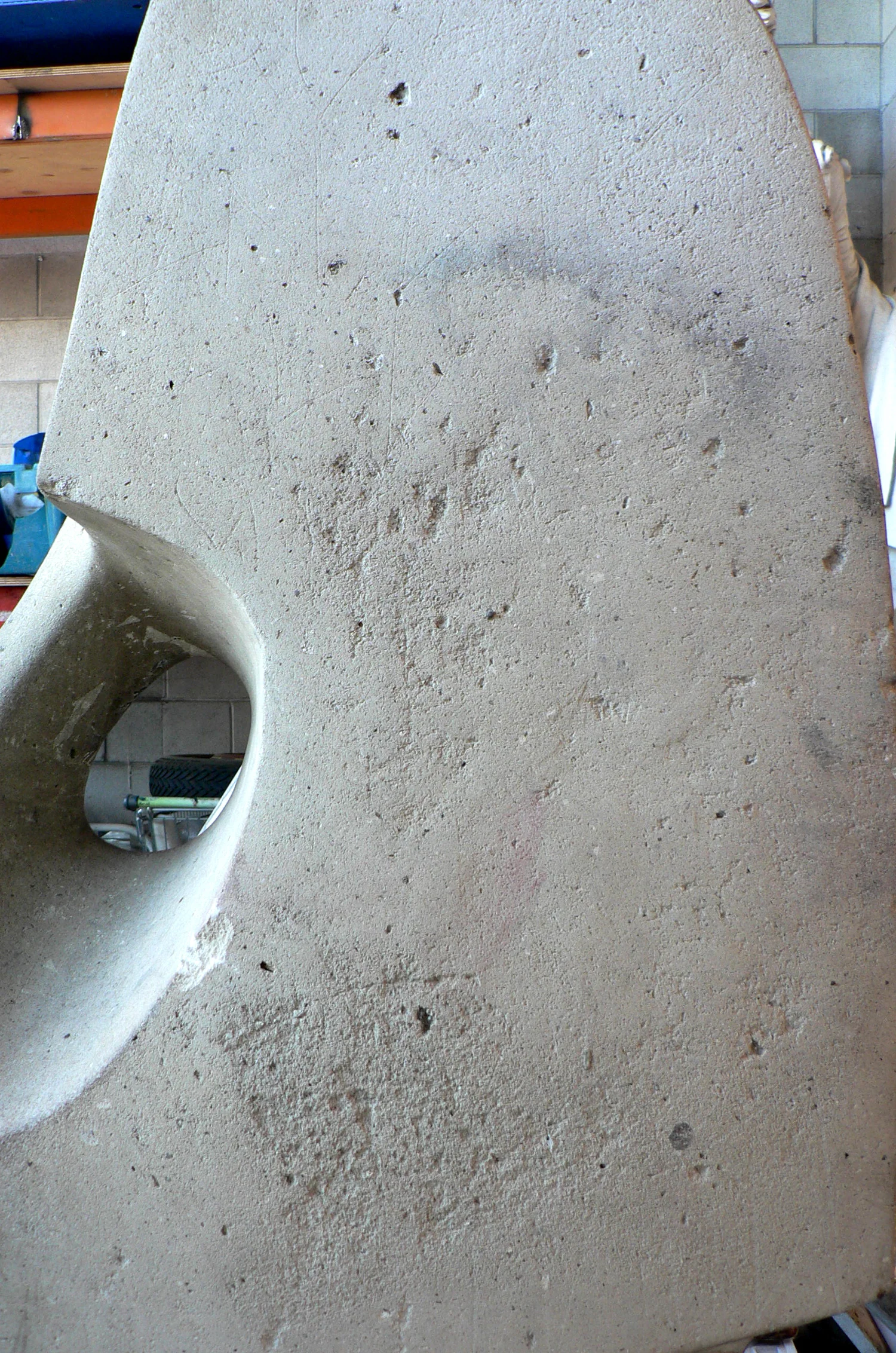

Before treatment / detail: surface is badly weathered and shows extensive damage (pitting).

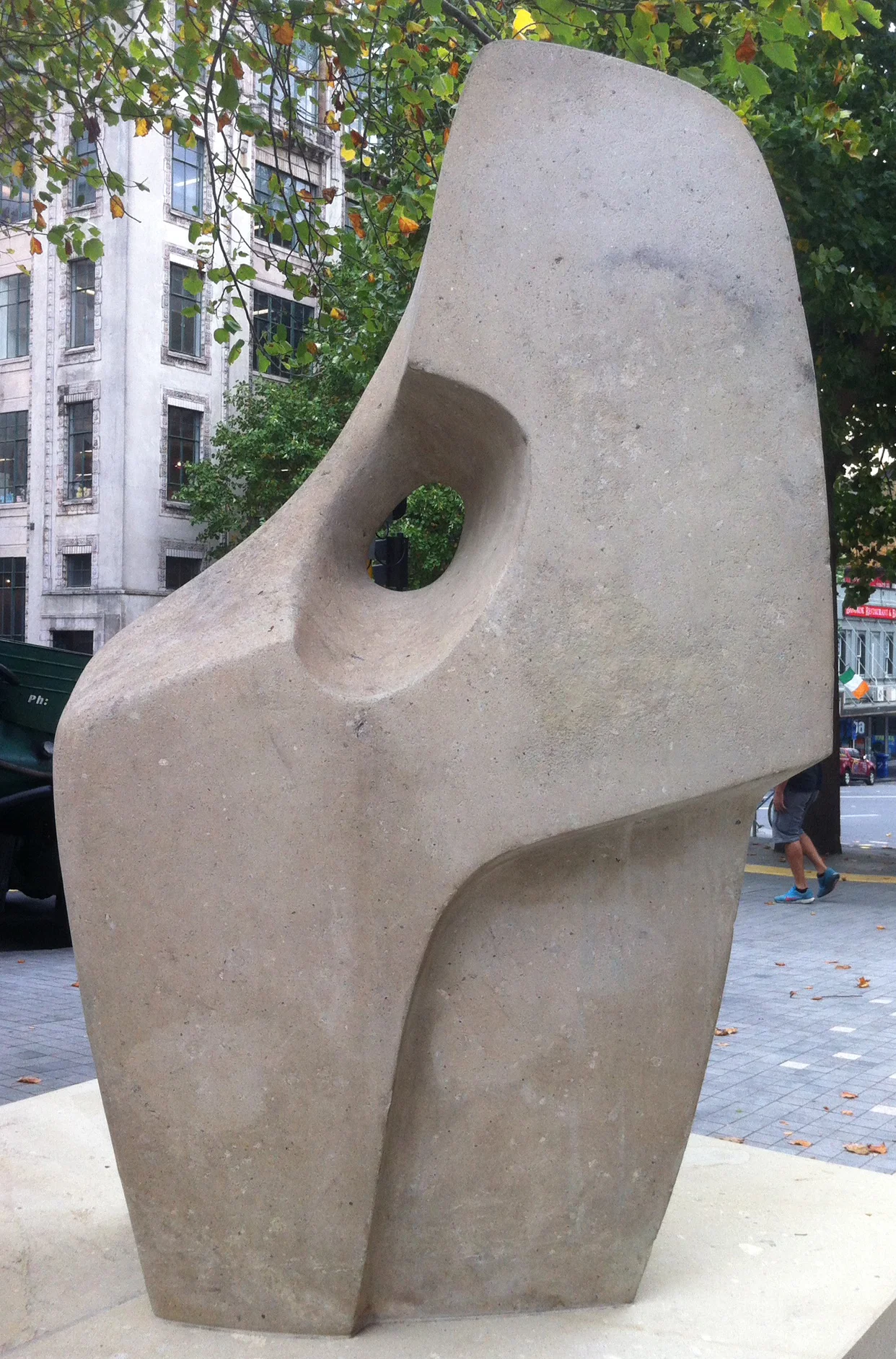

After treatment / general view: a combination of steam and solvent cleaning was applied to minimize the layer of anti graffiti. Previous joint repair (mortar) was removed and surface losses were in filled and colour matched. This is a reversible process that can be undone if necessary.

Before treatment / general view: sculpture's surface is badly weatheredand stained by a permanent anti graffiti coating.

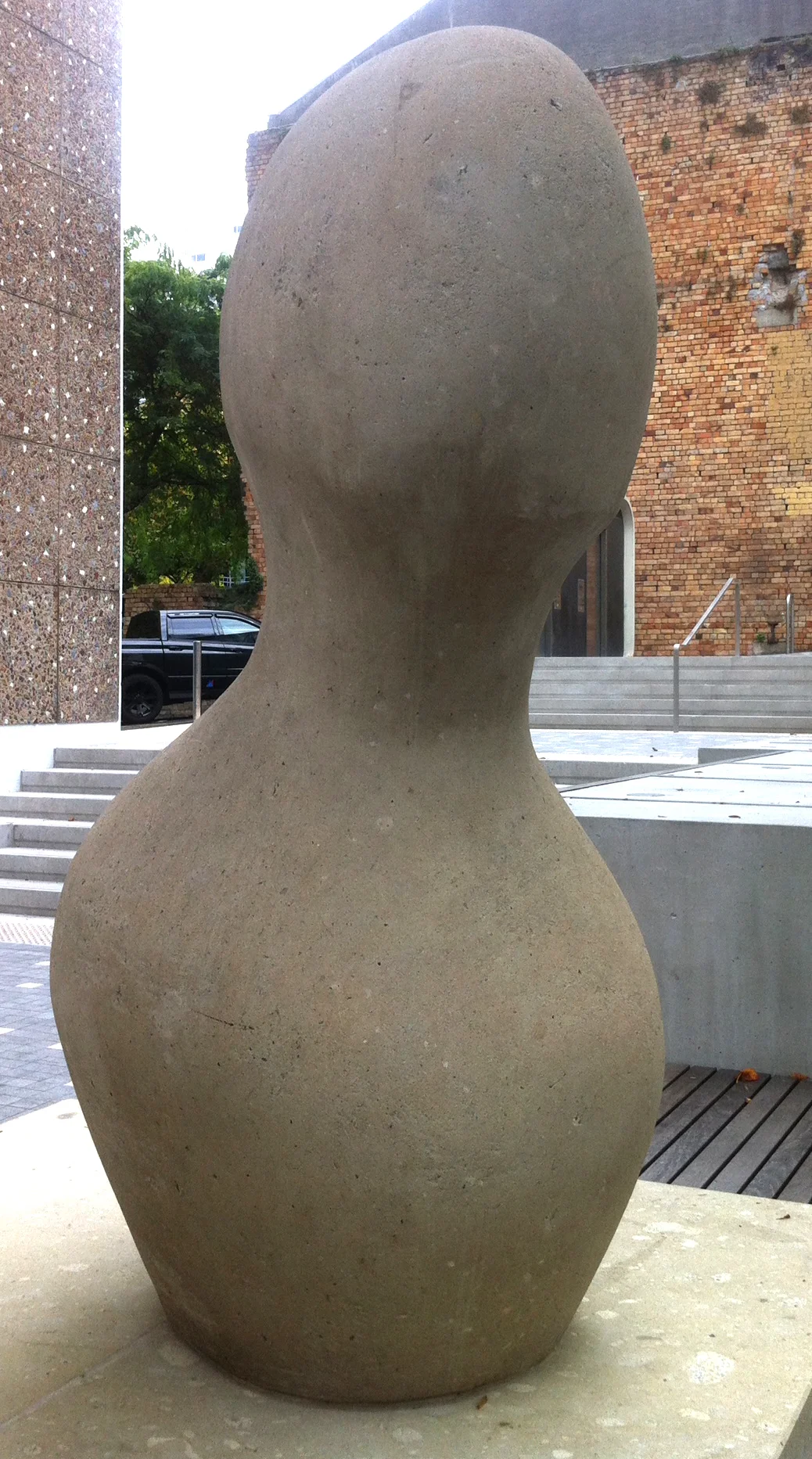

After treatment: a combination of steam and solvent cleaning was applied to minimize the layer of anti graffiti. Surface losses were in filled and colour matched. This is a reversible process that can be undone if necessary.

Before treatment / general view: marble surface is soiled and evidences several repairs made with a cement based mortar.

Before treatment / statue detail.

During treatment / detail statue: cleaning (steam) and removal of previous repairs.

During treatment / detail statue: removal of previous repairs

After treatment / detail statue: surface losses were infilled with a CaCO3 based putty. All infill's were sanded and color matched.

Before treatment / statue detail:  biological growth and several (conspicuous) cement based repairs.

After treatment / detail statue

Before treatment / plinth: joints are exposed and previous repairs are visible

After treatment / plinth: removal of previous repairs, infilling of surface losses and repointing of joints.

General view: after steam cleaning

During treatment / detail: marble surface is badly weathered and has a sugary texture.

After treatment / detail:  surface was consolidated and infilled to prevent water collecting and further weathering of the inter-granular micro fissures. This conservation process is entirely reversible.

General view / before treatment

During treatment /  steam cleaning of the surface

 During treatment / detail of surface fissures

 After treatment detail /  consolidation and infilling of cracks and fissures to avoid water collecting in these areas.

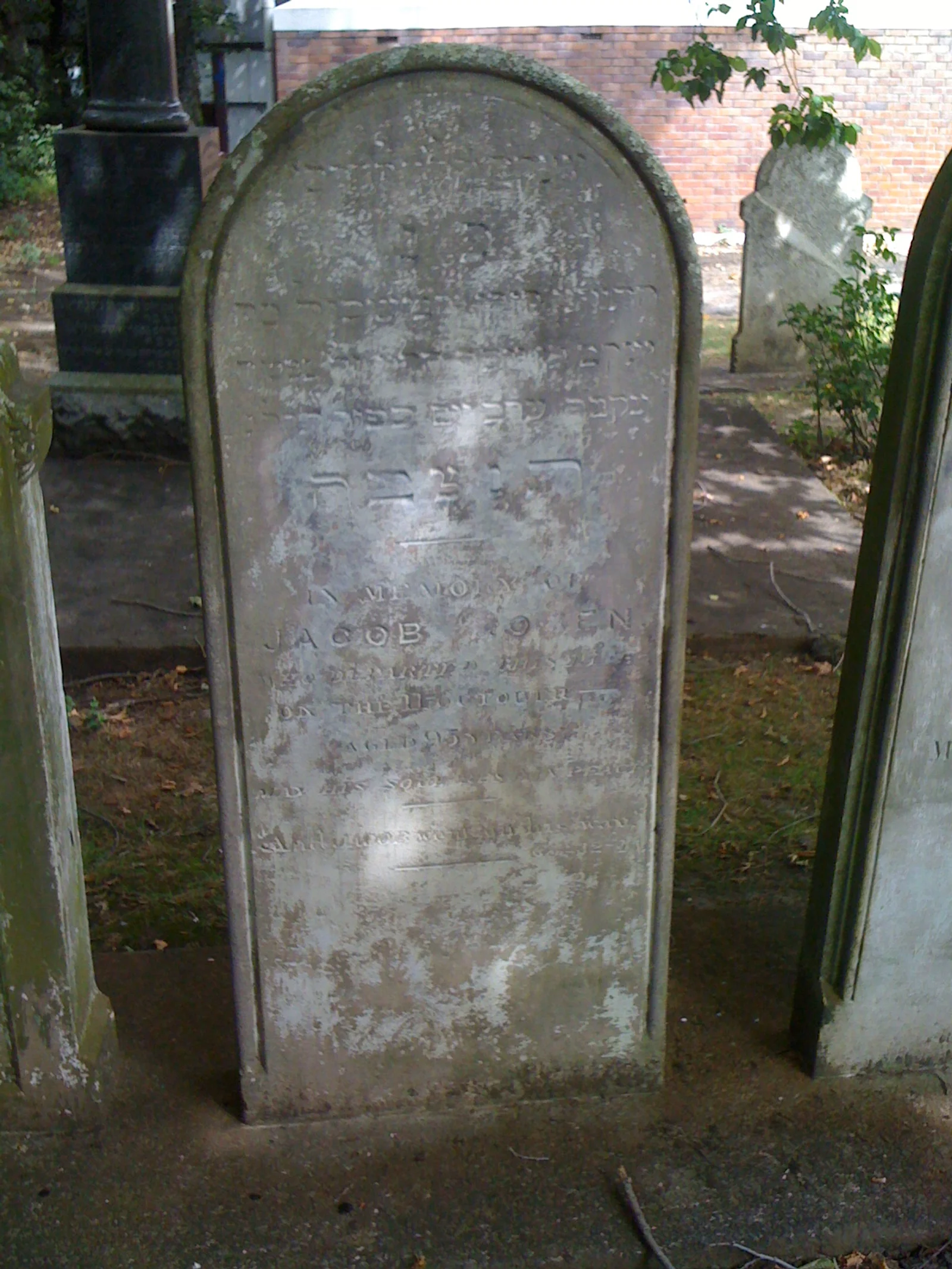

Jewish Cemetery Headstone

Jewish Cemetery Headstone after graffiti removal

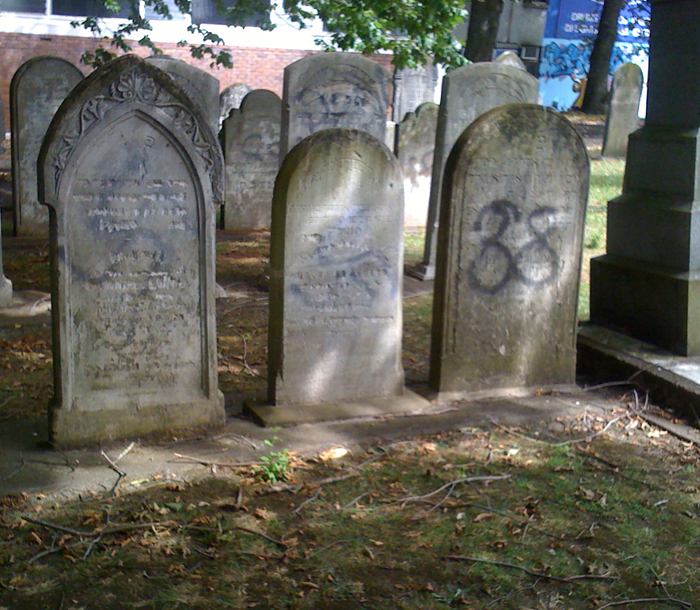

Jewish Cemetery Headstones

Jewish Cemetery Headstones after some graffiti removal

Jewish Cemetery Headstone

Jewish Cemetery Headstone after trial inpainting of remaining graffiti

Before cleaning / detail

During cleaning

After maintenance cleaning

After cleaning general view

Before cleaning detail / surface shows heavy biological growth (lichen, moss and fungi)

During cleaning: low pressure water washing of the surface

After cleaning / detail

Before treatment: although sculpture surface retains good detail and texture, ingrained soiling, stains and black accretions along with biological growth are visible. Structurally, the top half of the sculpture became detached from the body due to vandalism.

Before treatment: view of the sculpture's top half

During treatment: steam cleaning revealed patches of discoloration and further fissures.

During treatment / detail: reattachment of the upper element (head) and view of the structural crack.

After treatment
